Project selection
Consider Urban Oak for palettes built around white, charcoal, black, or other cool neutrals. Place it beside paint and millwork to compare their gray undertones.
8.0 mm Total-Thickness Collection
Urban Oak SPC flooring
DF-0205

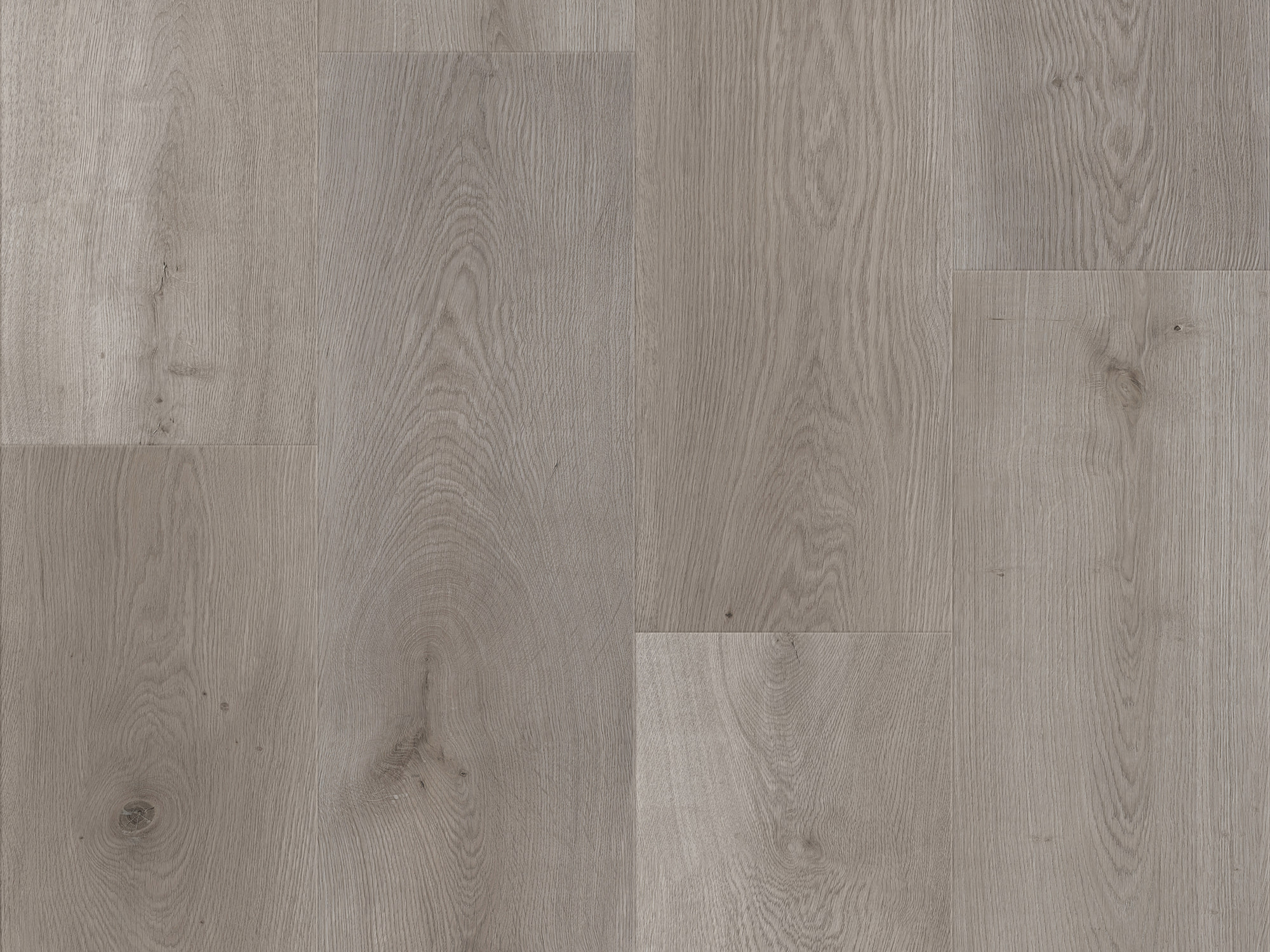

Urban Oak uses a cool pale-gray base with soft grain and quiet contrast across the approved room, detail, and display-floor images.
- Product code
- DF-0205
- Collection
- 8.0 mm Total-Thickness Collection
- Total thickness
- 8.0 mm
- SPC core thickness
- 6.5 mm
- Attached underlayment
- 1.5 mm IXPE
- Wear layer
- 22 mil
- Plank dimensions
- 60 × 9 in
- Coverage per carton
- 22.64 sq ft
- Color family
- Gray
The total thickness includes the attached IXPE underlayment, which provides moisture protection, sound reduction, and underfoot comfort.
Colors can appear different on screen. Request a physical sample to review the finish in person.
Product features
Product features at a glance.
- 22 milWear layer
- 60 × 9 inPlank dimensions
- 8.0 mm total6.5 mm SPC core + 1.5 mm attached IXPE
- Attached IXPEMoisture protection, sound reduction, and underfoot comfort
- Physical samplesRequest before selection
Color and project review
How to evaluate Urban Oak.
Physical sample review
View the Urban Oak sample under the project's actual lighting. Cool grays can appear warmer or bluer as daylight and artificial light change through the day.

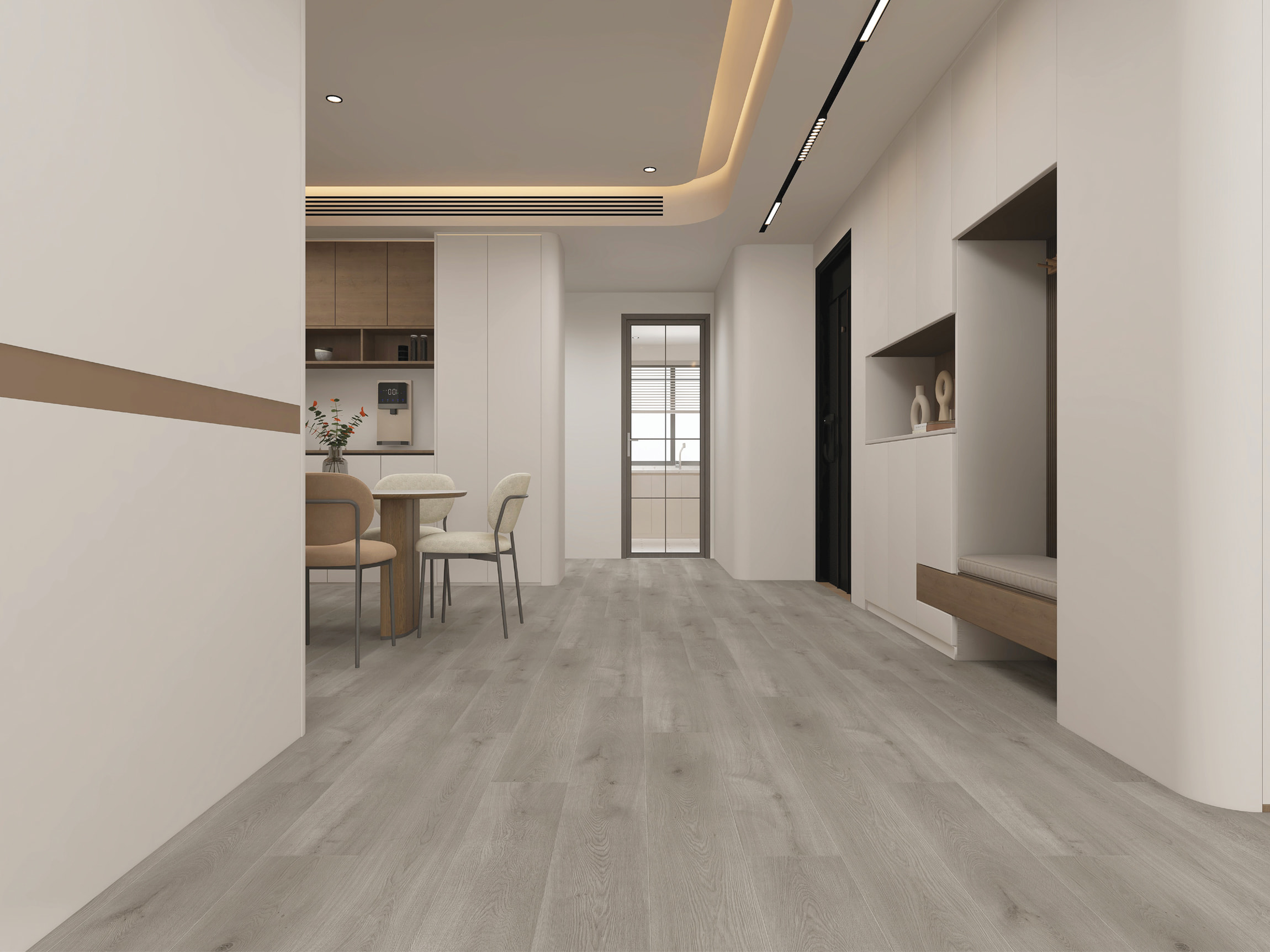

Room scenes are design visualizations, not photographs of completed installations. Use them for broad project context and confirm the selected color with a physical sample.
Related finishes
Compare Urban Oak with nearby color directions.
These appearance-based suggestions help with side-by-side color review. Construction and project requirements can differ, so compare specifications and request physical samples before selection.
Product specifications
- Total thickness
- 8.0 mm
- SPC core thickness
- 6.5 mm
- Attached underlayment
- 1.5 mm IXPE
- Wear layer
- 22 mil
- Plank dimensions
- 60 × 9 in
- Coverage per carton
- 22.64 sq ft
Product specifications
- Total thickness
- 8.0 mm
- SPC core thickness
- 6.5 mm
- Attached underlayment
- 1.5 mm IXPE
- Wear layer
- 22 mil
- Plank dimensions
- 60 × 9 in
- Coverage per carton
- 22.64 sq ft
Applications and room planning
Where Urban Oak can work visually.
Use these room ideas to narrow the palette, then verify the actual jobsite, installation details, and physical sample before specification.
Contemporary living areas
The cool pale-gray field can support white, charcoal, black, and other restrained contemporary finishes.
Home offices and studios
Its quiet contrast can create a neutral working backdrop beside metal, glass, or dark millwork.
Monochrome display spaces
The gray undertone can extend a cooler material palette where merchandise or furnishings remain the focus.
Appearance-led suggestions are not a technical approval for a room or building condition. Wet areas, stairs, radiant heat, seasonal spaces, commercial conditions, and other nonstandard installations need written project-specific direction.
Construction, clearly explained
Three product facts, without the jargon.
Urban Oak is a click-lock SPC plank with a catalog-listed wear layer and a factory-attached IXPE backing. The published total thickness is the SPC core plus that attached backing.
6.5 mm SPC core + 1.5 mm attached IXPE = 8.0 mm total- 0122 mil wear layer
The catalog wear-layer rating for the finished walking surface.
- 026.5 mm SPC core
The rigid click-lock body of the plank and the main part of its published thickness.
- 031.5 mm attached IXPE
Factory-attached backing for moisture protection, sound reduction, and underfoot comfort.
Installation requirements
Confirm these conditions before work begins.
- Accept the substrate.It must be structurally sound, stable, clean, dry, smooth, and suitable for resilient flooring.
- Check flatness.3/16 in over 10 ft or 1/8 in over 6 ft.
- Stabilize the site.55–85°F; no acclimation required.
- Protect floor movement.3/8 in perimeter space; t-molding at 40 ft.
- Plan the order and layout.Include a 5–15% cutting and culling allowance and blend planks from multiple cartons.
- Do not improvise extra layers.Do not add underlayment, a vapor retarder, adhesive, or another layer without written confirmation for the exact project.
Care and warranty
Protect the floor and keep the records.
- Remove grit first.Use a soft broom, clean microfiber dust mop, or a vacuum hard-floor setting that will not scratch.
- Damp-clean lightly.Use a clean microfiber pad and cleaner labeled safe for resilient vinyl flooring; avoid excess liquid.
- Avoid aggressive methods.Do not use steam, abrasive pads or powders, harsh solvents, wax, polish, or uncontrolled equipment.
- Prevent concentrated wear.Use compatible mats and furniture protectors, lift heavy loads, and manage strong direct sunlight and heat.
- Review the limited warranty.For eligible purchases, the official warranty for Urban Oak (DF-0205) provides 7 years of residential or 3 years of defined light-commercial coverage. Approved claims follow the affected-area material remedy in the warranty; voluntary labor is not covered.
Product questions
What to know before selecting Urban Oak.
What is the total construction thickness?
6.5 mm SPC core + 1.5 mm attached IXPE = 8.0 mm total. The catalog also lists a 22 mil wear layer.
Which rooms should I consider for this color?
The appearance-led starting points are contemporary living areas, home offices and studios, monochrome display spaces. Confirm technical suitability for the actual room and building conditions before specification.
Does the plank already include underlayment?
Yes. The stated total thickness includes 1.5 mm of factory-attachedIXPE. Do not add another layer unless it is confirmed in writing for the exact product and project.
Where can I get installation, care, and warranty information?
Use the linked Dream Floor installation and care PDFs, and open the official Limited Warranty for DF-0205 before purchase. The current warranty provides 7-year residential or 3-year defined light-commercial coverage, an affected-area material remedy, and no voluntary labor coverage; the exact PDF controls eligibility, exclusions, claims, and legally required remedies.
Coordinated accessories
Complete the floor with coordinated accessories.
Complete select Dream Floor colors with coordinated stair noses, T-moldings, and reducers. Our team helps confirm the right finish, dimensions, availability, and compatibility for each order.
Flush Stair Nose
Finishes the exposed edge where coordinating flooring meets a stair.
T-Molding
Finishes a transition between two floors of similar height.
Reducer
Creates a gradual transition from Dream Floor SPC to a lower adjacent surface.
Our team can coordinate accessory options for Urban Oak (DF-0205), including finish, dimensions, and application.
Ask about accessoriesDocuments
Documents for Urban Oak.
Access installation and care guides for DF-0205, plus the official limited warranty and direct support from our team.
| Document | Format | Availability |
|---|---|---|
| SPC Installation GuideGeneral Dream Floor SPC installation workflow and project-condition checks. | Open PDF | |
| Care & Maintenance GuideRoutine cleaning, spill response, floor protection, and when to contact Dream Floor. | Open PDF | |
| Limited WarrantyOfficial Napa Surfaces warranty, effective September 1, 2026: 7-year residential or 3-year defined light-commercial coverage, affected-area material remedies, and no voluntary labor coverage. | Open PDF |
Use the installation and care guides for project planning, confirm that the selected guide matches the Dream Floor product and jobsite conditions, and read the official Limited Warranty before purchase. The exact warranty controls eligibility, exclusions, claims, and remedies; page summaries do not expand coverage. Contact Dream Floor for a free paper copy of any public document.
